India's Trusted Manufacturer

Premium Square Ceiling Diffuser for Modern HVAC Systems

Precision-engineered aluminium square diffusers delivering uniform 4-way air distribution — engineered for commercial, industrial, and residential HVAC projects across India.

1.2 mm Aluminium Frame 20 mm Blade Spacing 4-Way Air Discharge RAL 9016 Powder Coat Custom Sizes Available

Get a Free Quote Download Catalogue

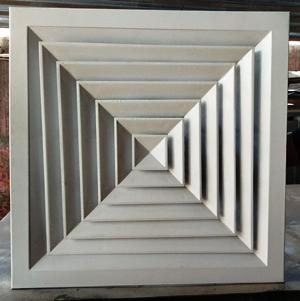

Square Ceiling Diffuser – 4-Way Air Distribution HVAC Component by Airotek

10+Years Mfg.

100+Happy Clients

PANIndia Supply

Square Diffuser installed in commercial ceiling – uniform air distribution

Product Overview

What Is a Square Ceiling Diffuser?

A square ceiling diffuser is a precision HVAC component mounted in ceiling grids to distribute conditioned air uniformly across a room. Its square geometry and multi-directional deflection blades eliminate temperature hot spots, ensuring consistent comfort at every corner of the space.

Designed to integrate seamlessly with standard modular ceiling systems, our square diffusers combine aerodynamic efficiency with a clean architectural profile — ideal for contemporary commercial and institutional interiors.

Frame Material Extruded Aluminium

Sheet Thickness 1.2 mm

Blade Pitch 20 mm

Standard Finish RAL 9016 Powder Coat

Damper Collar (Matt Black)

Why Airotek

Why Choose Our Square Diffuser Manufacturing?

From raw material selection to final quality testing, every square diffuser we produce meets the highest engineering and performance standards.

🏭

Superior Manufacturing Standards

Our fabrication process uses premium-grade extruded aluminium, galvanised steel, and corrosion-resistant alloys. Advanced CNC tooling ensures precise blade angles, smooth surface finishes, and tight dimensional tolerances.

📐

Comprehensive Size Range

Available in standard sizes compatible with modular T-bar ceilings, plus custom dimensions for non-standard ductwork and specialised architectural applications. Multiple neck sizes for flexible system integration.

🌬️

High-Performance Airflow

20 mm blade spacing maximises the effective free area, minimising outlet velocity and pressure drop. The result: whisper-quiet operation and excellent throw distance for uniform climate control in large spaces.

⚙️

Integral Opposed-Blade Dampers

Models AG-V-D and AG-H-D feature single-deflection blades with integral opposed-blade dampers, adjustable via a screwdriver slot operator for precise airflow balancing at the outlet level.

🎨

Custom Finishes on Request

Standard RAL 9016 white powder coat suits most commercial interiors. We also supply anodised, custom RAL colour, and special architectural finishes to match any interior design specification.

✅

Rigorous Quality Assurance

Every unit undergoes dimensional inspection, finish verification, and performance testing before dispatch. Our technical team provides CFD analysis support and installation guidance for optimal system results.

Technical Data

Square Diffuser – Key Technical Specifications

Reference data for product selection and system design. Contact us for full engineering data sheets or custom configurations.

Parameter	Specification	Notes
Frame Material	Extruded Aluminium	High-strength alloy, corrosion-resistant
Sheet Thickness	1.2 mm	Uniform gauge for consistent rigidity
Blade Spacing	20 mm pitch	High free-area ratio, low pressure drop
Airflow Direction	4-way horizontal discharge	360° perimeter air distribution
Damper Type	Integral collar damper (opposed blade)	Matt black finish; screwdriver slot operator
Standard Finish	RAL 9016 powder coat (white)	Custom colours available on request
Mounting	Standard T-bar ceiling grid / surface	Compatible with 600 × 600 mm grid modules
Available Sizes	Standard & custom	Multiple neck sizes for duct compatibility
Models	AG-V-D, AG-H-D	Single deflection with integral damper

Applications

Where Our Square Diffusers Are Used

Trusted by HVAC consultants, contractors, and facility managers across a wide range of sectors in India and beyond.

🏢

Commercial Offices

Consistent temperature control boosts workplace productivity and employee comfort in open-plan and private office environments.

🏥

Healthcare Facilities

Controlled, laminar air distribution supports sterile conditions, infection prevention, and regulatory compliance in hospitals and clinics.

🛍️

Retail & Shopping Malls

Optimal climate control enhances shopper comfort, encouraging longer dwell times and improved retail performance.

🎓

Educational Institutions

Fresh, well-distributed air in classrooms, lecture halls, and auditoriums improves concentration and learning outcomes.

🏨

Hotels & Hospitality

Silent, uniform air distribution enhances guest comfort and complements premium interior aesthetics in hotel rooms and lobbies.

🏭

Industrial & Warehouses

Robust aluminium construction handles demanding environments, ensuring reliable performance in large-span industrial spaces.

Performance Benefits

Technical Advantages of Airotek Square Diffusers

Engineered features that directly translate into measurable performance improvements for your HVAC system.

✓

4-Way Air Discharge Comprehensive room coverage from a single outlet, eliminating dead zones and ensuring uniform temperature distribution.

✓

Adjustable Damper Control Opposed-blade integral dampers allow precise CFM balancing at the point of delivery without additional accessories.

✓

Whisper-Quiet Operation 20 mm blade spacing reduces turbulence and velocity, delivering low NC levels suitable for noise-sensitive environments.

✓

Low Pressure Drop High free-area design minimises system resistance, reducing fan energy consumption and operating costs.

✓

Easy Maintenance Access Tool-free face removal for filter cleaning, damper inspection, and periodic maintenance without ceiling disruption.

✓

Corrosion-Resistant Construction Anodising and powder-coat options provide long-term protection against humidity and environmental degradation.

✓

Energy-Efficient Air Distribution Reduced temperature stratification means HVAC systems cycle less, lowering energy bills and extending equipment life.

✓

Grid-Compatible Modular Design Fits standard 600 × 600 mm T-bar ceiling modules, simplifying installation and reducing site labour costs.

Standard & Available Finishes

RAL 9016 Powder Coat (White) Factory standard finish. High adhesion, UV-stable coating suitable for air-conditioned interiors.

Anodised Natural / Bronze Durable electrolytic finish for exposed architectural installations requiring a metallic aesthetic.

Custom RAL Colours Any RAL colour powder coat available on request for projects with specific interior design requirements.

Matt Black Collar Damper Standard damper supplied in matt black. Matched collar dampers maintain visual consistency behind the diffuser face.

Our Clients

Trusted by Leading Organisations Across India

From infrastructure giants to healthcare leaders — our square diffusers are installed in hundreds of projects nationwide.

Get in Touch

Request a Quote for Square Diffusers

Our HVAC product specialists are ready to assist with product selection, sizing, custom finish requirements, and bulk pricing. Fill in the form and we'll respond within one business day.

📍
